产品体系Products & Solutions

设备配件、原辅材料、生产技术与轮胎业务协同布局Integrated portfolio spanning accessories, materials, process capability and tire business

产品信息分为设备配件、原材料(含辅料、小料)、生产技术和轮胎四大板块,其中设备配件覆盖密封件、胶囊、异形橡胶件、除尘系统和工业配套设备。The portfolio is organized into four segments: equipment accessories, raw materials including auxiliaries, production technology, and tires. The equipment accessory segment covers sealing parts, bladders, custom rubber components, dust collection systems, and industrial support equipment.

产品板块Product Segments

围绕轮胎项目建设形成四类业务协同Four coordinated business segments built around tire project development

设备配件Equipment Accessories

密封圈、阀门填料、中心机构、旋转密封、胶囊、异形胶件、除尘布袋、布袋除尘器、星型卸料器、阀门、金属软管及输送带等。Rubber rings, gland packing, center mechanisms, rotary seals, bladders, custom rubber parts, filter bags, bag filter dust collectors, rotary airlock valves, valves, metal hoses and conveyor belts.

原材料(含辅料、小料)Raw Materials

覆盖橡胶隔离剂、胶囊隔离剂、塑料垫布、炭黑等轮胎制造所需原辅材料,支持生产、储运与工艺配套。Covering rubber release agent, bladder release agent, plastic fabric, carbon black and related tire-manufacturing materials for production, storage, transport and process support.

生产技术Production Technology

新增密炼车间废润滑油回收提纯技术,面向轮胎工厂节油降本、环保合规和设备寿命提升。Expanded with waste lubricating oil reclamation technology for internal mixers, focused on oil savings, environmental compliance and longer equipment life in tire plants.

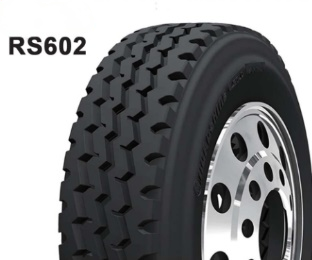

轮胎Tires

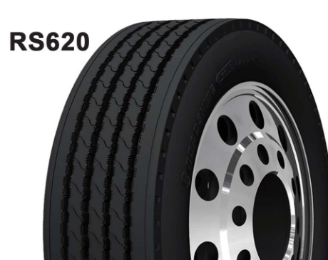

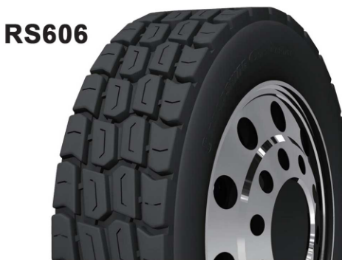

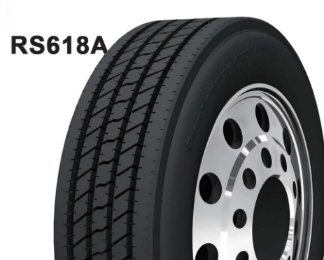

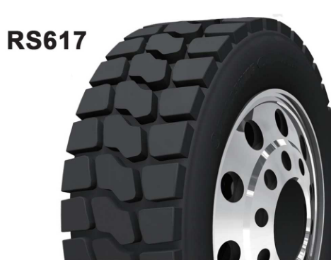

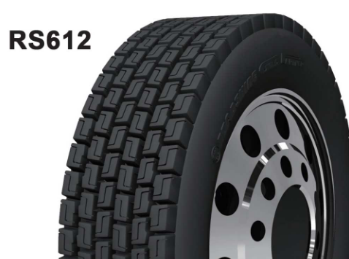

新增 12.00R20、11R22.5、315/80R22.5 等规格与 RS602、RS606、RS617、RS618A、RS612、RS620 花纹产品。Expanded with 12.00R20, 11R22.5 and 315/80R22.5 tire sizes together with tread patterns RS602, RS606, RS617, RS618A, RS612 and RS620.

产品导航Product Navigation

从设备配件延展到原材料、技术输出与轮胎产品的完整产品结构A complete structure spanning accessories, raw materials, technology output and tire products

密封件与机构Sealing Parts

双模定型硫化机与成型设备配套密封产品Sealing products for curing presses and tire building machines

双模定型硫化机夹盘密封圈
Rubber Ring
Rubber Ring

双模定型硫化机夹盘密封圈Clamping Disc Rubber Ring for Double-Mold Curing Press

用于各种双模定型硫化机胶囊夹盘的密封作用。Used for sealing the capsule clamping disc of various double-mold curing presses.

材质Material
耐热橡胶Heat-resistant rubber
用途Use
用于各种双模定型硫化机胶囊夹盘密封。Seals the capsule clamping disc of various double-mold curing presses.

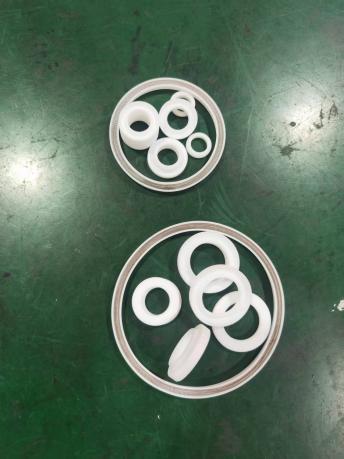

双模定型硫化机阀门填料
Rubber Ring
Valve Packing

双模定型硫化机阀门填料Valve Gland Packing for Double-Mold Curing Press

用于各种双模定型硫化机调节阀、切断阀密封。Used for sealing regulating valves and shut-off valves on various double-mold curing presses.

材质Material
聚四氟乙烯PTFE
用途Use
用于双模定型硫化机调节阀和切断阀密封。Used for sealing regulating valves and shut-off valves on double-mold curing presses.

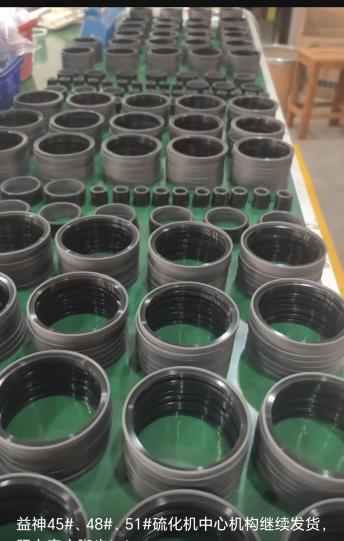

双模定型硫化机中心机构
Center Mechanism
Center Mechanism

双模定型硫化机中心机构Center Post Mechanism of Double-Mold Curing Press

用于各种双模定型硫化机中心机构密封。Used for sealing the center mechanism of various double-mold curing presses.

材质Material
聚四氟乙烯 + 耐热橡胶PTFE + heat-resistant rubber
用途Use
用于双模定型硫化机中心机构密封。Seals the center mechanism of double-mold curing presses.

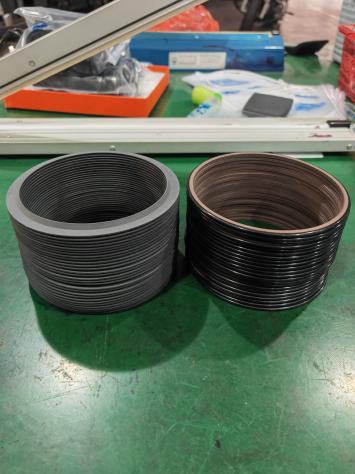

成型机旋转密封
Rotary Seal
Rotary Seal

成型机旋转密封Rotary Seal for Tire Building Machine

用于 VMI、萨驰、软控成型机的旋转密封。Used for rotary sealing of VMI, SAVANNI and RUANCON building machines.

材质Material
聚四氟乙烯 + 碳纤维 + 橡胶圈PTFE + carbon fiber + rubber ring
用途Use
用于 VMI、萨驰、软控成型机的旋转密封。Used for rotary sealing of VMI, SAVANNI and RUANCON building machines.

胶囊与橡胶件Bladders & Rubber Parts

覆盖工程胎、载重胎及大型轮胎设备用橡胶件Rubber parts for OTR, truck tire and large tire equipment applications

全钢工程胎反包胶囊
Bladder
OTR Bladder

全钢工程胎反包胶囊Turn-up Bladder for All-Steel OTR Tire

用于全钢工程机械子午线轮胎成型工序,实现胎体反包压合。Used in the building process of all-steel OTR radial tires for carcass turn-up pressing.

规格Specifications
17.5R25、20.5R25、23.5R25、26.5R25、29.5R2517.5R25, 20.5R25, 23.5R25, 26.5R25, 29.5R25
材质Material
丁基橡胶 + 天然橡胶复合材质Butyl rubber + natural rubber composite
用途Use
在 P1+2 一次法成型机上实现胎侧、内衬层、钢丝加强层、胎体帘布的贴合与反包压合,确保胎圈和胎侧无褶子、无气泡。On the P1+2 single-stage building machine, it applies and presses sidewalls, inner liner, steel cord layer and carcass ply to keep bead and sidewall areas free of wrinkles and bubbles.

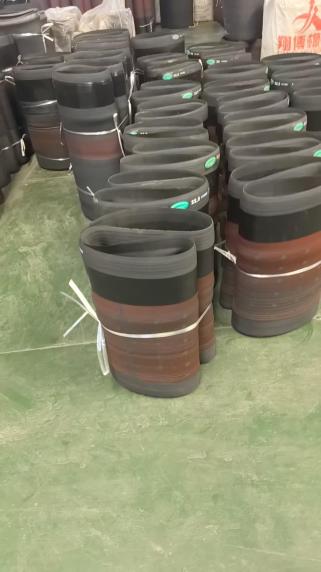

助推胶囊
Bladder
Booster Bladder

助推胶囊Booster Bladder

用于轮胎成型机胎体助推与定位辅助。Used for carcass boosting and positioning assistance on tire building machines.

规格Specifications
Φ600mm、Φ700mm、Φ800mm、Φ900mm、Φ1000mmPhi600mm, Phi700mm, Phi800mm, Phi900mm, Phi1000mm
材质Material
高弹性天然橡胶 + 补强剂High-elastic natural rubber + reinforcing agent
产品用途Product Use
用于轮胎成型机胎体助推、定位辅助与成型工序稳定支撑。Used for carcass boosting, positioning assistance and process stabilization on tire building machines.

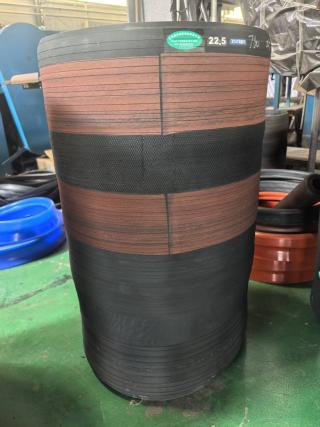

全钢载重胎反包胶囊
Bladder
Truck Bladder

全钢载重胎反包胶囊Turn-up Bladder for All-Steel Truck Tire

用于全钢载重子午线轮胎成型反包。Used for turn-up in the building of all-steel truck and bus radial tires.

规格Specifications
11R22.5、12R22.5、295/80R22.5、315/80R22.5、12R24.511R22.5, 12R22.5, 295/80R22.5, 315/80R22.5, 12R24.5
材质Material
氯化丁基橡胶为主,掺配天然橡胶Chlorobutyl rubber blended with natural rubber
产品用途Product Use
用于全钢载重胎成型反包工序,提升胎体包覆稳定性与成型效率。Used in the turn-up process of all-steel truck tire building to improve carcass wrapping stability and production efficiency.

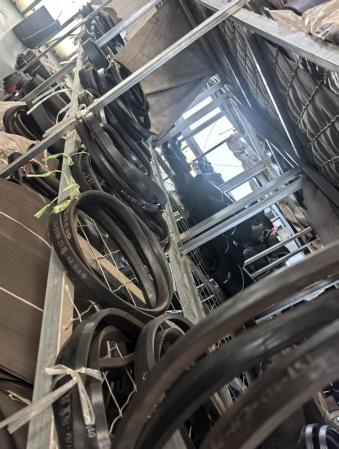

异形胶条
Rubber Profile
Rubber Profile

异形胶条Rubber Profile

用于轮胎设备密封、减震与缓冲。Used for sealing, vibration damping and cushioning in tire equipment.

规格Specifications
10×15mm、12×20mm、15×25mm、20×30mm、25×35mm10x15mm, 12x20mm, 15x25mm, 20x30mm, 25x35mm
材质Material
三元乙丙橡胶(EPDM)EPDM
产品用途Product Use
用于轮胎生产设备的密封、导向、缓冲与结构补偿等工况。Used for sealing, guiding, buffering and structural compensation in tire production equipment.

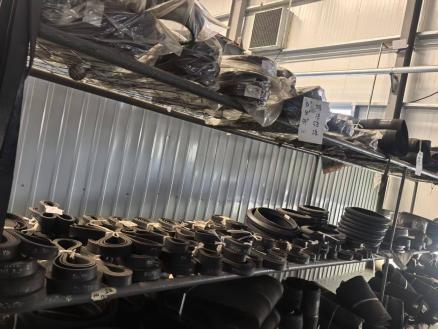

异形胶环
Rubber Ring
Special Ring

异形胶环Special-shaped Rubber Ring

用于轮胎成型机、硫化机密封与定位。Used for sealing and positioning in tire building machines and curing presses.

规格Specifications
Φ300×20mm、Φ400×25mm、Φ500×30mm、Φ600×35mm、Φ700×40mmPhi300x20mm, Phi400x25mm, Phi500x30mm, Phi600x35mm, Phi700x40mm
材质Material
丁腈橡胶(NBR)NBR
产品用途Product Use
用于成型与硫化设备的密封、定位、减震和连接补偿。Used for sealing, positioning, vibration reduction and connection compensation in building and curing equipment.
大型胶圈
Large Ring
Large Ring

大型胶圈Large-sized Rubber Ring

用于大型轮胎硫化机密封与隔热。Used for sealing and heat insulation in large tire curing presses.

规格Specifications
Φ800mm、Φ900mm、Φ1000mm、Φ1100mm、Φ1200mmPhi800mm, Phi900mm, Phi1000mm, Phi1100mm, Phi1200mm
材质Material
氟橡胶 + 丁基橡胶FKM + butyl rubber
产品用途Product Use
用于大型轮胎硫化机的密封、隔热与压力保持。Used for sealing, thermal insulation and pressure retention in large tire curing presses.

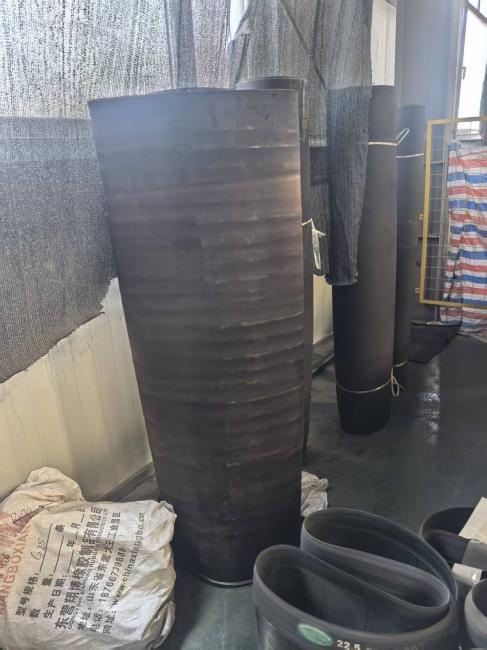

大型胶套
Large Boot
Large Boot

大型胶套Large Rubber Boot

用于轮胎成型、硫化设备防护、缓冲与导向。Used for protection, cushioning and guiding in tire building and curing equipment.

规格Specifications
Φ500×500mm、Φ600×600mm、Φ700×700mm、Φ800×800mm、Φ900×900mmPhi500x500mm, Phi600x600mm, Phi700x700mm, Phi800x800mm, Phi900x900mm
材质Material
高强度天然橡胶 + 耐磨助剂High-strength natural rubber + wear-resistant additives
产品用途Product Use
用于大型轮胎成型、硫化设备的防护、缓冲与导向支撑。Used for protection, cushioning and guiding support in large tire building and curing equipment.

除尘与工业设备Dust & Industrial Equipment

覆盖过滤、收尘、卸料与输送关键节点Covering filtration, dust collection, discharge and conveying applications

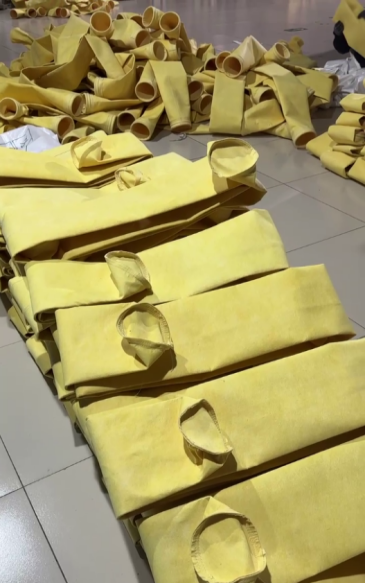

除尘器布袋
Filter Bag
Filter Bag

除尘器布袋Filter Bag

作为除尘器主要配件,用于空气净化和物料回收。As the main component of dust collectors, filter bags are used for air purification and material recovery.

规格Specifications
φ130×2000mm、φ130×2500mm、φ130×3000mm、φ130×6000mm、φ160×6000mm,可定制。phi130x2000mm, phi130x2500mm, phi130x3000mm, phi130x6000mm, phi160x6000mm, customizable.
材质Material
常温、中温、高温材质可选,包括涤纶针刺毡、PPS、芳纶、玻纤、PTFE、P84、氟美斯、玄武岩等。Available in normal, medium and high-temperature materials including polyester needled felt, PPS, aramid, fiberglass, PTFE, P84, Flomes and basalt.
用途Use
拦截过滤粉尘和烟气,使洁净空气排放并回收可再利用粉料。Filters dust and particulates from air and flue gas, enabling clean-air discharge and recovery of reusable powder.
布袋除尘器
Dust Collector
Baghouse

布袋除尘器Bag Filter Dust Collector

高效捕集工业粉尘、气固分离、净化烟气,实现环保达标排放与粉尘回收。Efficiently collects industrial dust, separates gas and solids, purifies flue gas and supports compliant emissions with dust recovery.

规格Specifications
单机脉冲除尘器、气箱脉冲除尘器,常用型号 DMC-24、DMC-36、DMC-48 至 DMC-360,可按风量与过滤面积定制。Standalone pulse-jet and air-box pulse-jet dust collectors, common models from DMC-24 to DMC-360, customizable by air volume and filtration area.
材质Material
碳钢和不锈钢,以碳钢为主。Carbon steel and stainless steel, primarily carbon steel.
行业应用Applications
建材、冶金钢铁、电力、化工医药食品、矿山机械木工、垃圾焚烧与危废处理。Building materials, metallurgy and steel, power generation, chemical/pharmaceutical/food, mining/machinery/woodworking, waste incineration and hazardous waste.

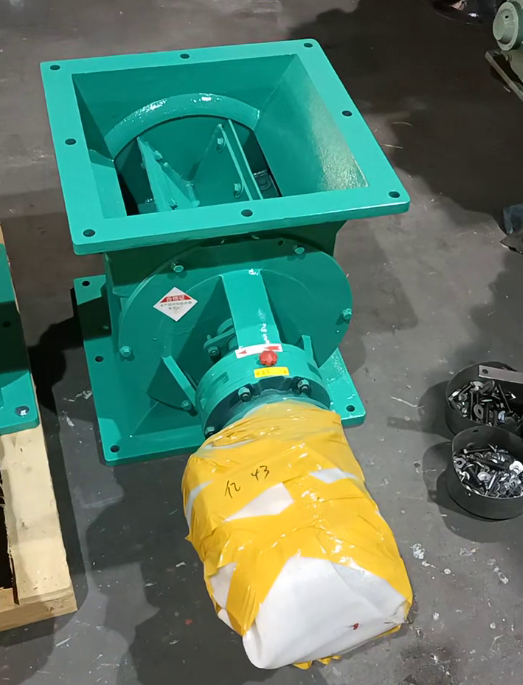

星型卸料器
Airlock Valve
Airlock Valve

星型卸料器Rotary Airlock Valve

面向除尘器配套、料仓卸料、气力输送与密封隔压场景。Designed for dust collector integration, hopper discharge, pneumatic conveying and pressure isolation.

规格Specifications
YJD-06AB、YJD-12AB、YJD-16AB、YJD-26AB,支持圆口、方口及其它口径定制,内口径最小 80mm,最大约 1.2m。YJD-06AB, YJD-12AB, YJD-16AB and YJD-26AB with round, square and custom ports, inner diameters from 80mm up to about 1.2m.
材质Material
铸铁、碳钢、不锈钢。Cast iron, carbon steel and stainless steel.
用途Use
连续均匀排灰,锁风供料,避免漏气并实现上下设备压差场景下的密封隔压。Provides continuous discharge, air locking, feeding and sealing under pressure-differential conditions.

布袋除尘器主要行业应用Bag Filter Dust Collector Industry Applications

  • 建材:水泥、石灰、陶瓷等粉尘控制与粉料回收。Building materials: dust control and powder recovery for cement, lime and ceramics.
  • 冶金钢铁:高炉、转炉、烧结、电炉等高温烟尘处理。Metallurgy and steel: high-temperature dust treatment for blast furnaces, converters, sintering and electric furnaces.
  • 电力:燃煤、生物质锅炉烟气除尘与飞灰回收。Power generation: flue gas dust collection and fly ash recovery for coal-fired and biomass boilers.
  • 化工、医药、食品:反应釜、干燥、混合、研磨、包装除尘。Chemical, pharmaceutical and food processing: dust collection in reactors, drying, mixing, grinding and packaging.
  • 矿山、机械、木工:破碎、筛分、打磨、切割、焊接除尘。Mining, machinery and woodworking: dust collection for crushing, screening, grinding, cutting and welding.
  • 垃圾焚烧与危废:烟气净化及二噁英、重金属、颗粒物排放控制。Waste incineration and hazardous waste: flue gas purification and control of dioxins, heavy metals and particulate emissions.

阀门产品Valve Products

补充硫化与工业过程控制系统的阀门配套Valve support products for curing and industrial process control systems

气动二位四通滑阀
Valve
4/2 Valve

气动二位四通滑阀Pneumatic 4/2-way Spool Valve

用于工业自动化及橡胶工业过程控制系统中的水介质切换与输送,适配硫化机等设备气控系统。Used for water-media switching and conveying in industrial automation and rubber process control systems, including vulcanizer pneumatic systems.

规格Specifications
公称通径 1/4"、1/2"、3/4",单气控(A)/双气控(S),公称压力 2.5MPa,工作温度 5~60℃,信号压力 0.3~0.35MPa,接口 Rc1/4、Rc1/2、Rc3/4。Nominal diameters 1/4", 1/2" and 3/4", single pneumatic control (A) or double pneumatic control (S), 2.5 MPa nominal pressure, 5~60°C working temperature, 0.3~0.35 MPa signal pressure, and Rc1/4, Rc1/2, Rc3/4 connections.
材质Material
阀体为黄铜合金,密封件为耐水橡胶,执行机构为铝合金。Brass-alloy valve body, water-resistant rubber seals, and aluminum-alloy actuator.
用途Use
控制水介质切换与输送,阀杆行程 16/20mm,换向时间 ≤1s。Controls water switching and conveying, with 16/20 mm valve stem travel and switching time of no more than 1 second.
自力式压力调节阀
Valve
Pressure Valve

自力式压力调节阀Self-actuated Pressure Control Valve

气给定信号控制的减压阀,可与空气减压阀及程序控制器配套,用于氮气硫化场景。A self-operated pressure reducing valve driven by pneumatic signal, designed for use with air pressure reducing valves and program controllers in nitrogen vulcanization.

规格Specifications
ZG3/4(DN20),公称压力 1.0MPa,压力特性 △P2/△P1≤2.9%,工作温度 -20~280℃,调节压力 0.02~0.62MPa,信号压力 0.03~0.62MPa。ZG3/4 (DN20), 1.0 MPa nominal pressure, pressure characteristic △P2/△P1 ≤ 2.9%, operating temperature -20~280°C, adjustable pressure 0.02~0.62 MPa, and signal pressure 0.03~0.62 MPa.
材质Material
铜合金、铝合金、不锈钢。Copper alloy, aluminum alloy and stainless steel.
用途Use
适用介质为氮气、蒸汽和气体,允许泄漏量 DN20 为 21ml/min,整阀重量 7.1kg。Suitable for nitrogen, steam and gas media, with allowable leakage of 21 ml/min for DN20 and total valve weight of 7.1 kg.
气动高低压切断阀
Valve
Cut-off Valve

气动高低压切断阀Pneumatic High-Low Pressure Cut-off Valve

用于力车胎立式水压硫化机及橡胶平板硫化配水阀门,可实现低压注水后自动切换高压。Used as a water distribution valve for vertical hydraulic tire vulcanizers and rubber plate vulcanizers, automatically switching from low-pressure filling to high-pressure operation.

规格Specifications
集成气动执行机构、低压单向阀、切断阀和高低压控制阀,接口规格 M16×1.5、3-M30×1.5,总高 270mm,中心高 53mm / 91mm。Integrates a pneumatic actuator, low-pressure check valve, shut-off valve and high/low-pressure control valve, with M16×1.5 and 3-M30×1.5 connections, overall height of 270 mm, and center heights of 53 mm / 91 mm.
材质Material
不锈钢,软密封结构。Stainless steel with soft rubber seals.
用途Use
保证橡胶制品硫化过程的高压切换,并可与控制仪表配合实现压力、温度、时间三指标自动控制。Supports high-pressure switching during vulcanization and works with control instruments to automate pressure, temperature and time control.

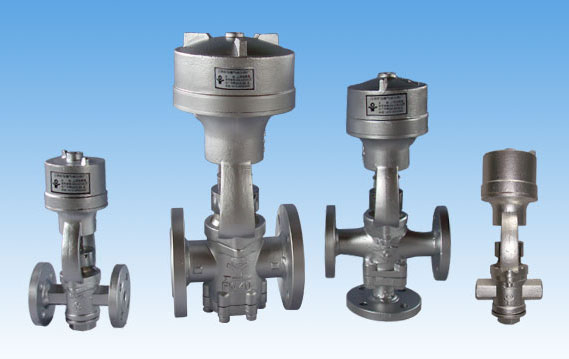

气动二位切断阀
Valve
On-off Valve

气动二位切断阀Pneumatic 2-position On-off Valve

由活塞式执行机构和切断阀组成,适用于工业自动化管路切断、介质控制和回路切换。A piston-actuated shut-off valve used for automated pipeline shut-off, media control and return-line switching.

规格Specifications
公称通径 DN10~DN80(3/8"~3"),公称压力 PN1.6/4.0MPa,工作温度 -20℃~+230℃,控制信号压力 0.35MPa。Nominal diameter DN10~DN80 (3/8"~3"), nominal pressure PN1.6/4.0 MPa, operating temperature -20°C~+230°C, and 0.35 MPa control signal pressure.
材质Material
铜合金、铝合金、不锈钢。Copper alloy, aluminum alloy and stainless steel.
用途Use
阀杆行程按通径匹配为 11/16/23/30mm,三通型可增接回路管道,二通型采用封闭阀盖。Valve stem travel is matched as 11/16/23/30 mm by size; the three-way type supports an extra return line, while the two-way type uses a sealed valve cover.

软管与输送带Hoses & Conveyors

补充柔性连接、传动与流水线输送产品Flexible connection, transmission and conveying products

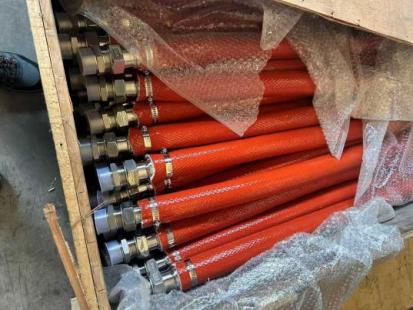

金属软管
Metal Hose
Metal Hose

金属软管Metal Hose

用于管道系统补偿位移、减震降噪与柔性连接,适配蒸汽、水和气体等介质输送。Used for displacement compensation, vibration reduction and flexible connection in piping systems for steam, water and gas conveyance.

规格Specifications
DN15~DN100,长度可定制,压力等级 PN1.6/2.5MPa,螺纹连接。DN15~DN100, customizable length, PN1.6/2.5 MPa pressure rating, threaded connection.
材质Material
304/316 不锈钢波纹管,不锈钢编织网套,碳钢或不锈钢接头。304/316 stainless-steel bellows, stainless-steel braided outer layer, and carbon-steel or stainless-steel end fittings.
用途Use
适用于蒸汽、水、气体等介质的柔性输送和管道补偿。Suitable for flexible conveying and pipeline compensation for steam, water and gas media.

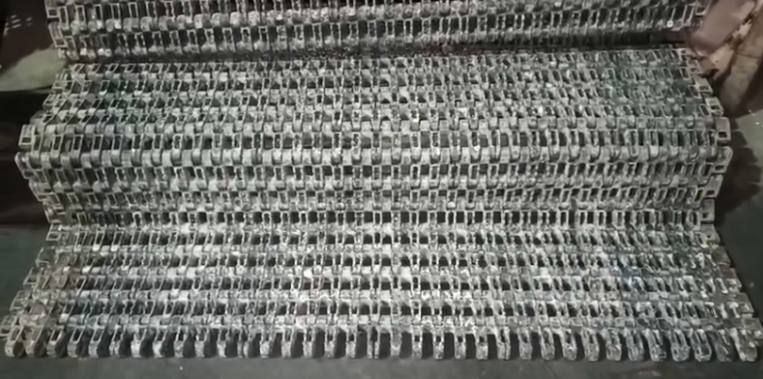

模块输送带
Conveyor Belt
Modular Belt

模块输送带Modular Conveyor Belt

用于物料输送、传动和流水线传输,兼顾耐油、耐酸碱和易清洗特性。Designed for material conveying, transmission and assembly-line transport with oil resistance, acid/alkali resistance and easy cleaning.

规格Specifications
宽度 508mm × 厚度 12mm,节距 36mm,长度定制。Width 508 mm × thickness 12 mm, pitch 36 mm, customizable length.
材质Material
PP、PE、POM 及不锈钢销轴。PP, PE, POM and stainless-steel pins.
用途Use
适用于连续输送、流水线传输和设备传动部位。Suitable for continuous conveying, assembly-line transport and drive positions in industrial equipment.

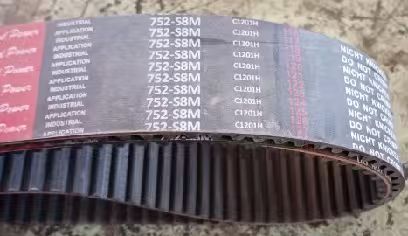

同步带
Timing Belt
Timing Belt

同步带Timing Belt

用于物料输送、动力传递和流水线配套传动,适合定制长度配套应用。Used for material conveying, power transmission and assembly-line drive support with customizable lengths.

规格Specifications
880-8M-30 / HTD-752-8M-50,长度定制。880-8M-30 / HTD-752-8M-50, customizable length.
材质Material
氯丁橡胶 / 聚氨酯 / 尼龙芯,齿面尼龙布。Chloroprene rubber / polyurethane / nylon core with nylon fabric on the tooth surface.
用途Use
适用于输送、动力传递和流水线传输工位。Suitable for conveying, power transmission and assembly-line transport applications.

原材料Raw Materials

覆盖隔离剂、塑料垫布与炭黑等轮胎制造辅材Materials for tire production including release agents, plastic fabric and carbon black

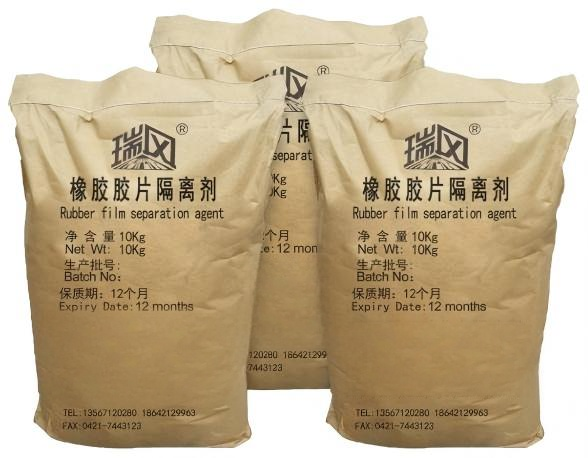

橡胶隔离剂
Release Agent
Release Agent

橡胶隔离剂Rubber Release Agent

在橡胶胶片表面形成致密隔离膜,用于轮胎炼胶、储存和转运环节的防粘处理。Forms a dense isolation film on rubber sheets for anti-tack treatment during tire mixing, storage and transfer.

规格Specifications
淡黄色粉体。Light yellow powder.
材质Material
特殊纳米材料体系,主要包括硅酸镁铝凝胶、硅灰、氧化锌、气相二氧化硅、脂肪酸衍生物及表面活性配方。A special nanomaterial system including magnesium aluminum silicate gel, silica fume, zinc oxide, fumed silica, fatty acid derivatives and surfactant-based additives.
用途Use
适用于子午线轮胎和斜胶胎等各类橡胶胶片生产、储存与转运防粘。Used for anti-tack treatment in the production, storage and transfer of rubber sheets for radial and bias tires.

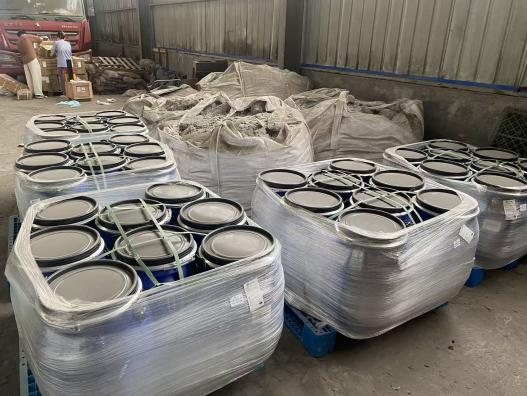

胶囊隔离剂
Release Agent
Bladder Agent

胶囊隔离剂Bladder Release Agent

喷涂于胶囊表面,在胶囊与生胎胚之间提供润滑和排气,提升硫化装填与脱离效果。Sprayed on bladder surfaces to provide lubrication and venting between the bladder and green tire, improving loading and separation during vulcanization.

规格Specifications
SR-2241(水性无填料)、SR-7112(水性含粉剂填料)、SR-7401(水性无填料),包装 25KG/桶、50KG/桶、200KG/桶、1000KG/桶(可定制)。SR-2241 (water-based, filler-free), SR-7112 (water-based, powder-containing filler), SR-7401 (water-based, filler-free), packed in 25KG, 50KG, 200KG and 1000KG barrels with custom options.
材质Material
有机硅、高分子乳液。Silicone and polymer emulsion.
用途Use
有助于成品胎外观保持洁净均匀,可延长胶囊寿命并减少窝气产生。Helps keep finished tires clean and uniform, extends bladder service life and reduces trapped air.

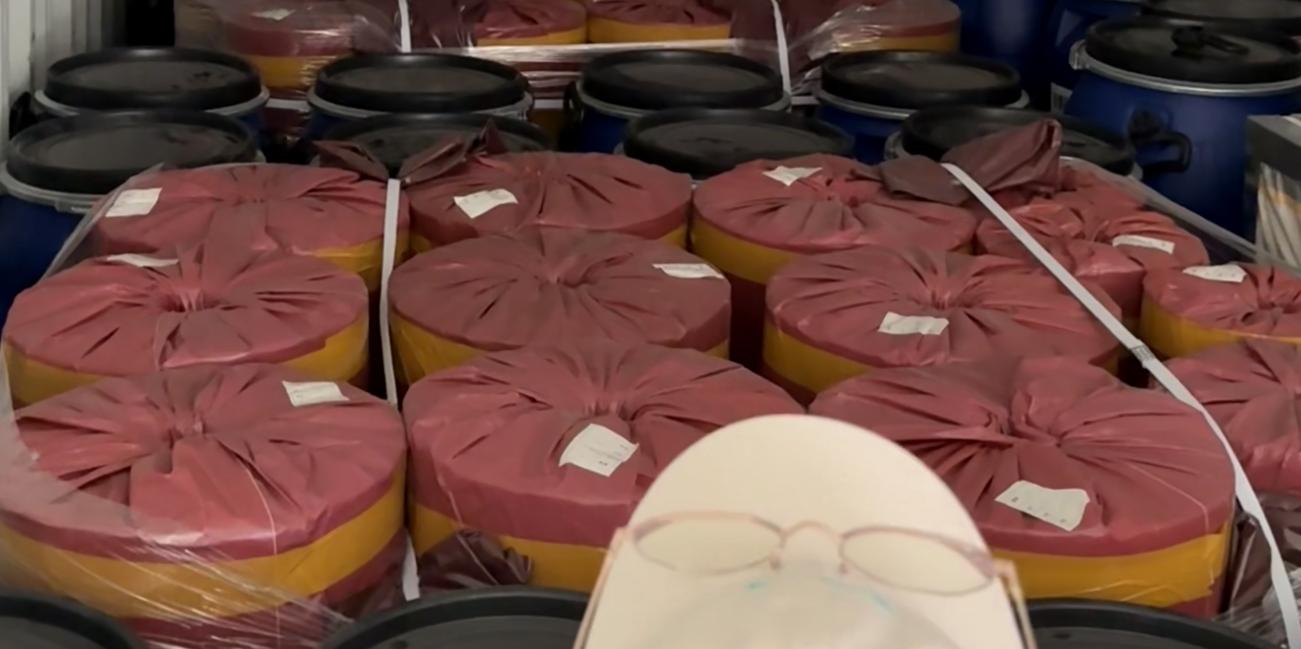

塑料垫布
Plastic Fabric
Plastic Fabric

塑料垫布Plastic Fabric

用于橡胶胶片隔离防粘、半成品铺垫及隔离防护。Used for anti-stick isolation of rubber sheets as well as padding and protection for semi-finished products.

规格Specifications
红色网纹宽度 1.1m / 1.15m、厚度 0.09mm;白色、黄色、蓝色网纹宽度 0.82m、厚度 0.09mm。Red mesh in 1.1m / 1.15m width with 0.09mm thickness; white, yellow and blue meshes in 0.82m width with 0.09mm thickness.
材质Material
聚乙烯。Polyethylene.
用途Use
适用于胶片隔离、防粘和半成品周转保护。Suitable for sheet isolation, anti-tack handling and protection of semi-finished products during transfer.

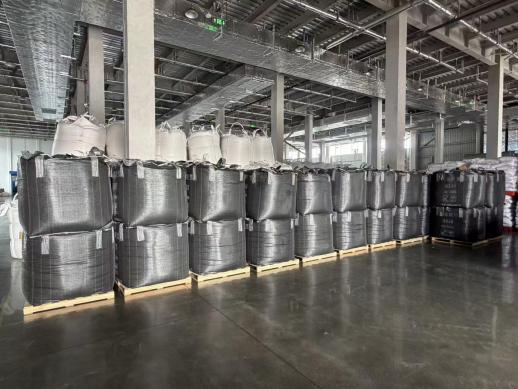

炭黑
Carbon Black
Carbon Black

炭黑Carbon Black

面向高性能橡胶件与轮胎结构部位提供高耐磨炉法炭黑,同时适用于工业油墨、涂料与色浆着色。High-abrasion furnace carbon black for high-performance rubber parts and tire structures, also suitable for inks, coatings and color pastes.

规格Specifications
N330、N326。N330 and N326.
材质Material
高耐磨炉法炭黑。High abrasion furnace carbon black.
用途Use
适用于钢丝带束层、胎侧、内胎、工程轮胎、输送带、高压胶管、密封件、减震胶块和工业胶辊等。Used in steel-cord belt layers, sidewalls, inner tubes, engineering tires, conveyor belts, high-pressure hoses, seals, damping blocks and industrial rubber rollers.

生产技术Production Technology

密炼车间废润滑油回收提纯技术Waste Lubricating Oil Reclamation Technology for Internal Mixer

技术简介Technology Overview

本技术专为轮胎厂密炼车间研发废润滑油回收过滤装置,可将废油高效提纯再生、循环复用,帮助工厂降低用油成本、减少固废排放、延长设备寿命,是面向高耗油轮胎工厂的节能设备。This technology is a waste lubricating oil recovery and filtration solution developed for tire-factory internal mixing workshops. It efficiently purifies and regenerates waste oil for reuse, helping reduce oil cost, solid-waste emissions and equipment wear.

设备可回收密炼机 90% 可收集废油,并将废油提纯至杂质含量 ≤0.3%,满足密炼机复用标准。The system recovers 90% of collectable waste oil from the internal mixer and purifies it to impurity content of no more than 0.3%, meeting reuse requirements for internal mixers.

技术优势Advantages

  • 提纯效率高于传统方式,废油高纯化率达到 60%~85%。Purification efficiency is higher than traditional methods, with a high purification rate of 60%~85%.
  • 显著节油降本,减少设备磨损并保护连续生产。Delivers meaningful oil savings and cost reduction while reducing equipment wear and protecting production continuity.
  • 符合环保要求,适配各类轮胎厂密炼车间改造与扩产场景。Supports environmental compliance and fits retrofit or expansion scenarios for a wide range of tire factory mixing workshops.
  • 合作模式灵活,满足工厂降本、增效和绿色制造需求。Flexible cooperation models support factory goals around cost reduction, efficiency improvement and greener manufacturing.

轮胎产品Tire Products

覆盖 12.00R20、11R22.5 与 315/80R22.5 规格的轮胎产品Tire products covering 12.00R20, 11R22.5 and 315/80R22.5 sizes

轮胎产品
Tire
Tire Product

轮胎产品系列Tire Product Portfolio

当前产品覆盖 12.00R20、11R22.5、315/80R22.5 三个规格,配置 RS602、RS606、RS617、RS618A、RS612、RS620 六种花纹,面向中长途运输、工程矿用和客车高速工况。The current tire portfolio covers sizes 12.00R20, 11R22.5 and 315/80R22.5 with six tread patterns: RS602, RS606, RS617, RS618A, RS612 and RS620 for long-haul transport, engineering/mining and highway coach applications.

规格Specifications
12.00R20(RS602、RS606)、11R22.5(RS617、RS618A)、315/80R22.5(RS612、RS620)。12.00R20 (RS602, RS606), 11R22.5 (RS617, RS618A), and 315/80R22.5 (RS612, RS620).
材质Material
天然橡胶、炭黑、钢帘线。Natural rubber, carbon black and steel cord.
用途Use
覆盖全轮位、转向轮和驱动轮等位置,适配高速、公路、工地、矿区及混合路况。Covers all-position, steering and drive-wheel applications for highways, national roads, worksites, mines and mixed road conditions.

12.00R2012.00R20

  • RS602:中长途卡车全轮位,适用于铺装高速、国道和非铺装混合路面,预计里程 10~12 万公里。RS602: All-position tire for medium and long-haul trucks on highways, national roads and mixed unpaved surfaces, with expected mileage of 100,000~120,000 km.
  • RS606:驱动轮专用,适用于工地、矿区及高速铺装路面,预计里程 8~10 万公里。RS606: Dedicated drive-wheel tire for worksites, mining areas and paved highways, with expected mileage of 80,000~100,000 km.

11R22.511R22.5

  • RS617:面向推土机和矿用车辆全轮位,适合泥泞、碎石、坑洼等恶劣路况,预计里程 4~8 万公里。RS617: All-position tire for bulldozers and mining vehicles, suited to muddy, gravel and potholed conditions, with expected mileage of 40,000~80,000 km.
  • RS618A:中长途客车及卡货车转向轮、挂车轴位专用,适用于良好公路路况,预计里程 18~25 万公里。RS618A: Steering and trailer-axle tire for long-haul buses and truck/trailer applications on good highways, with expected mileage of 180,000~250,000 km.

315/80R22.5315/80R22.5

  • RS612:中长途卡车驱动轮专用,适应高速、国道、混合路面和工地短途工况,预计里程 12~15 万公里。RS612: Dedicated drive-wheel tire for medium and long-haul trucks across highways, national roads, mixed surfaces and short-site operations, with expected mileage of 120,000~150,000 km.
  • RS620:中长途客车全轮位,适用于良好公路和高速工况,不适合矿区、工地等复杂路面,预计里程 18~22 万公里。RS620: All-position tire for long-haul buses on good highways, not intended for mines, worksites or complex unpaved routes, with expected mileage of 180,000~220,000 km.
